Chaplet In Casting
|
| Chaplet In Casting |
What is chaplet in casting?
Core in sand casting of different sizes and shapes are used to create holes and cavities in the final casting.
If the size of the cores is very big it becomes difficult to hold the core in the mould cavity.
To solve this problem. Chaplets are used as a supporting element to support the core.
The main purpose of chaplets is to be metallic support inside the mould cavity to support the core as shown in diagram (a) below.
|
| (a) Chaplet Diagram |
Mostly chaplet is made of the same material as the casting.
Material for chaplet depends upon the type of metal used for making a casting.
For cast iron and steel chaplet materials chosen are low-carbon steel and tin.
Chaplet fuses with the molten metal and becomes part of the final casting.
Chaplets are supposed to fuse and melt along molten metal to be part of the final casting.
To give strength to caplets, chaplets are shot peened to increase their compressive strength and then teened before use.
Chaplets used in sand casting process requirements.
Chaplet must have the following requirements before using with core:
- The chaplet should be free from corrosion.
- The surface of the chaplet must be clean and smooth.
- The caplet should be free from moisture to reduce blowhole defects.
- Chaplets should not have any trace of oil on their surface.
The use of chaplets should be avoided for pressure vessels.
Chaplet required for casting or no depends upon unsupported load.
If an unsupported load is less than or equal to zero no chaplet is required t support the core.
But if the area is greater than zero chaplet area is required as 30 `mm^{2}` for every Newton of unsupported load.
The formula for calculating unsupported load is as follows:
Unsupported Load`= P-3.5A_{c}`
Types of Chaplets
|

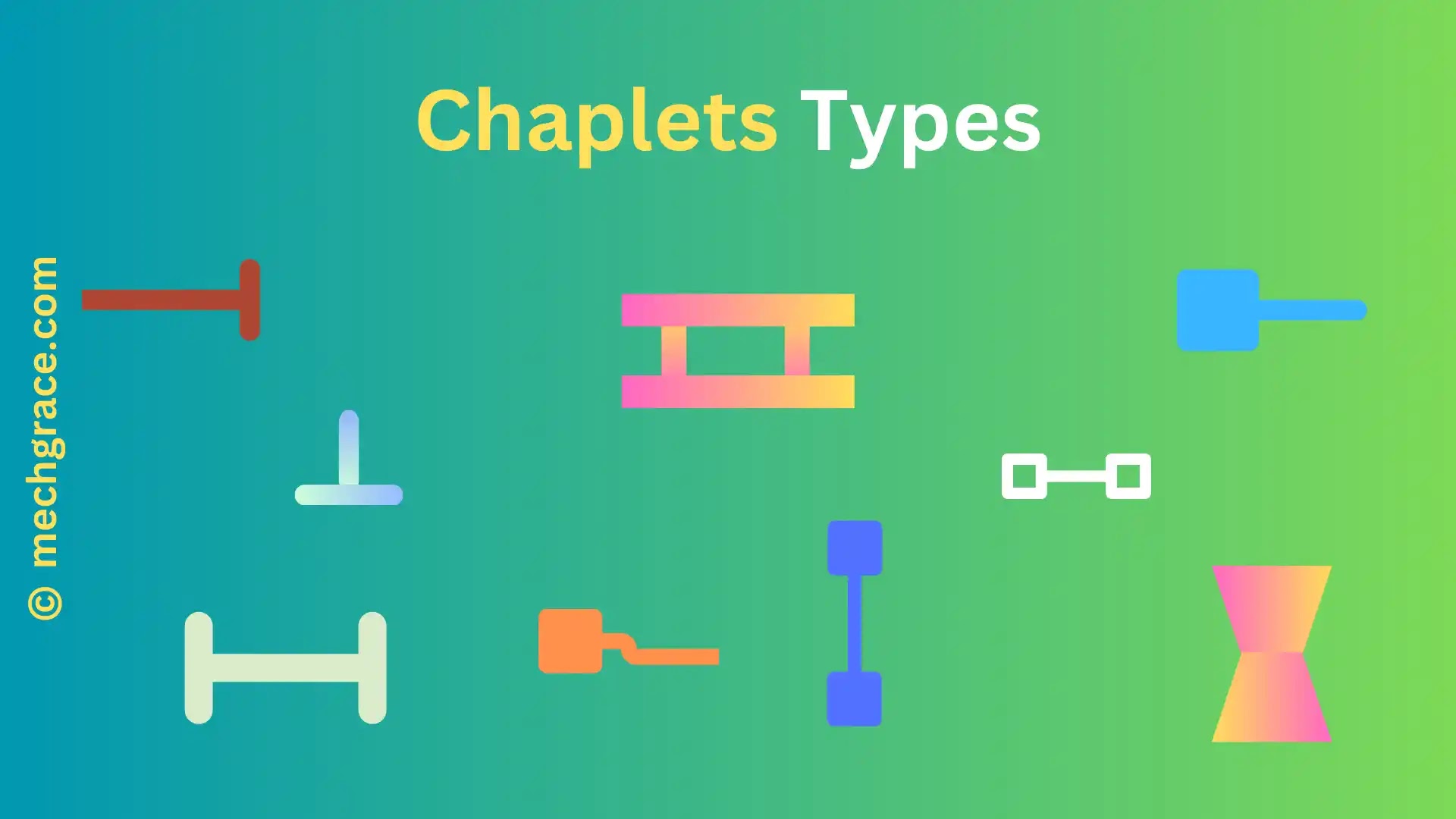

| (b) Chaplet In Sand Casting |
7 Types of chaplets in casting are as follows:
-
Sheet metal chaplet.
(c) Sheet Metal Chaplets In Casting
-
Stem chaplet.
(d) Stem Chaplets In Casting
-
Cast chaplets.
(e) Cast Chaplets In Casting
-
Radiator chaplet.

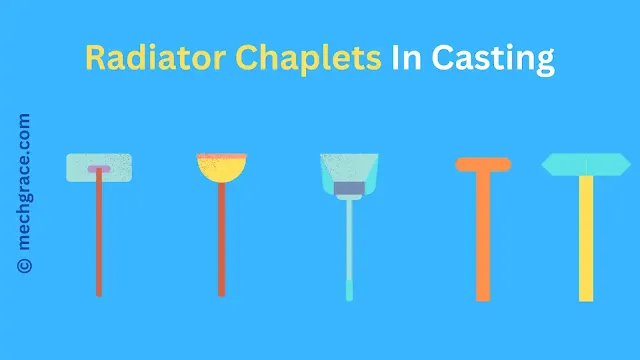

(f) Radiator Chaplets In Casting
- Riveted chaplet.
- Double-head chaplet.
- Welded chaplet.
When are chaplets inserted in the mould cavity?
Chaplets are utilized in mould cavities along with cores to give support to the core during the casting process.
Is chaplet removed after casting?
No, chaplets are not removed after the casting process. Chaplets are supposed to melt and fuse with the casting.
What is the function of chaplets?
The function of the chaplet is to support the core during the sand-casting process.
The main function of the chaplet is to hold the core in its position during the sand casting process and reduce shifting of the core during the process eliminating core shift defects.
